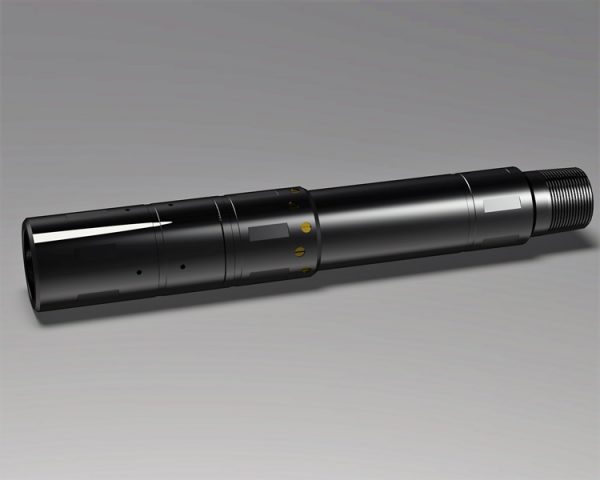

Ball Seat Shear Release Tool

The ball seat shear release tool is designed to use over pull and pressure to separate the top sub from the bottom sub. Tensile release settings are varied by the number of shear screws installed in the tool. A steel ball is drop onto the ball seat to create a pressure differential in the tool to aid in separation. The ball seat is a replaceable part and the ID can be varied if required for job design.

The Shear Tool is rated to 302 F (150 C) and 10,000 PSI (70 MPa)

SKU: N/A Category:


  • 2.875” (73.0 mm)
  • 3.063” (77.8 mm)
  • 3.500” (88.9 mm)
